The choice of Mongoose Team Rider Cam White, the Legion is built on a full 4130 Chromoly frame and full chromoly fork. The parts kit is loaded with full chromoly 48-spline cranks, 9t driver hub and Odyssey® Chase Hawk grips.
Sorry, this model no longer available
Mongoose Legion Specifications
Bike Parts | Decriptions |
---|---|
Sizes: | 20 |

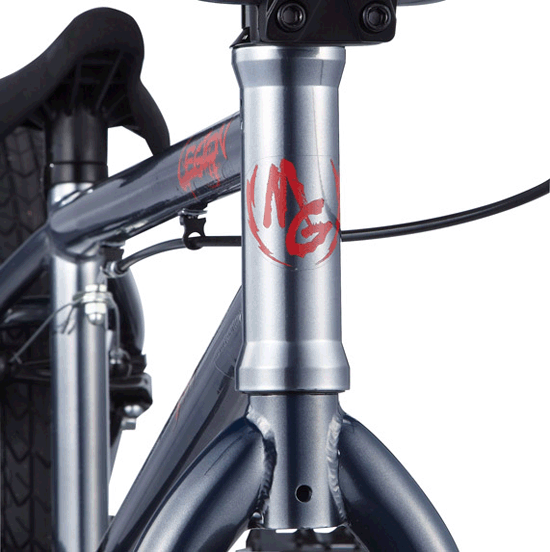

Frame: | 100% 4130 Chromoly 20.75" Top Tube with removable brake mounts |
Fork: | Full Chromoly, 1 1/8"" |
Crank: | Full Chromoly 48-spline 3-piece tubular 175mm |
Bottom Bracket: | Sealed, Mid, 19mm |
Shifters: | N/A |
Cog Set: | 9t driver |
Chain: | KMC HL710 half-link |
Wheel Size: | 20" |
Rims: | Alloy doublewall 36 Hole |
Front Hub: | Affix Alloy with 3/8" axle, sealed bearing, 36 Hole |
Rear Hub: | Alloy with 14mm axle, sealed bearing cassette, 9t driver, 36 Hole |
Tires: | Innova 20 x 2.25 (F) 20 x 2.0 (R) |
Pedals: | Odyssey Twisted PC |
Handlebar: | Full Chromoly 8.25" Rise |
Stem: | Front Load Two-piece clamp 50mm reach |
Headset: | Campy-style Sealed Integrated Threadless, 1 1/8" |
Brake Levers: | Tektro Alloy |
Crankset Chainwheel: | 25t alloy _Motomag_ design |
Spokes: | 14G Stainless |
Grips: | Odyssey Chase Hawk Grips |
Saddle: | Mongoose Padded One-Piece Seat/Post |
Seat Post: | Integrated Alloy, 25.4 x 200 |
