How to Use Bicycle Gears Efficiently

bike-gears

shimano-drive-train-3

Bicycle gears are designed to make riding easier and to present different challenges on a route.  Due to complexity of gears, scare of damage the chain, sound of changing the gears, chain drop etc, hence many riders limit themselves just shifting to few gears or ride the bike at “standard” gear combination.

For those looking to learn or confirm about how to use their gears, this tutorial is for you:

Learning About Gears

A bike can range from any number of gears to your classic 10-speed (2 x 5) to modern models ranging from 18-30 speeds. The ways of shifting gears are similar regardless number of gears equipped on your bike.

Why 24 / 27 / 30 speed this value?

Speed = # gear combinations.  NOT determine how fast the bike can go.

shimano_deore_crank shimano_deore_cassette

e.g. MTB (Shimano Deore 30 speed)
Front has 3 gears & Rear has 8 gears. Total combination is 24 (3*8)

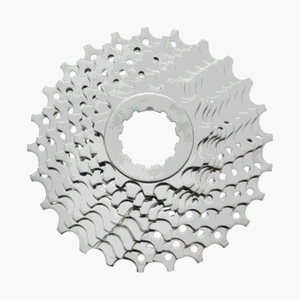

shimano_tiagra_crank shimano_tiagra_cassette

e.g. Road Bike (Shimano Tiagra 20 speed
)
Front has 2 gears & Rear has 10 gears. Total combination is 20 (2*10).

Gear Shifter

shimano-xt-t780-2

Get familiar your bike gear shifter. Must know the shifter levers to trigger HIGH and LOW gear.

  •
Left Hand shifter (L) – Control Front Derailleur (L1, L2, L3)
  • Right Hand Shifter (R) – Control Rear Derailleur (R1, R2, …. R10)

Tips: Shifting the left-hand lever will cause big jumps in the gear whereas the right-hand gear is used for more fine-tuning and little adjustments.

Which Gears For Which Conditions?

No matter which gear you start off in it’s important to shift into the proper situation for each riding condition:

gear-combinations

  • Low Gears
    – For climbing uphill
    – Combination: F1 pair with R1, R2, R3
  • Middle Gears
    –  For everyday terrain and flat to mild hills.
    –  Combination: F2 pair with R4, R5, R6
  • High Gears
    – For descending a hill but also in training situations to build up leg muscle.
    – Combination: F3 pair with R5, R6, R7

F = Front Gear, R = Rear Gear

Concept similar to car gear box. Low gear for uphill, High gear for downhill.

Avoid this gear combination

Avoid using both front and rear in the biggest sprocket or smallest sprocket at the same time. This could causes bike chain stretch, gear not shift properly, slipping and worn out the chain over the time.

[X] F3 pair with R1
[X] F1 pair with R7

[X] = wrong usage, F = Front Gear, R = Rear Gear

How to find a gear combination that suit you?

A good rule of thumb to follow to find the proper gear is that the pedals should make a revolution about every second.

  • Scenario 1: If your pedaling speed too fast/light and bike moving slow
Then, shift to Higher gear.
  • Scenario 2: If your pedaling speed too slow/hard and bike moving slow
Then, shift to Lower gear.

You must understand theory of how the gears work and how they’re supposed to feel when at optimum levels shifting will become second nature – it just takes some practice.
