Tacx Neo Smart Trainer T2800

  • Max power (40km/h) : 2200 Watt
  • Magent: 32 Neodymium magnets
  • Type: Interactive Smart direct drive with motor brake
  • Operation : Automatic
  • Max slope : 25% 1
  • Accuracy : < 1%
  • Max Torque : 85Nm
  • Max Brake Force : 250N
  • Flywheel Effect: Variable to 125 kg

NOTE: Cassette is excluded

Inclusive 6% GST
Colour or size is subject to availability
SKU: A10000651 Category: Tags: , Brand:

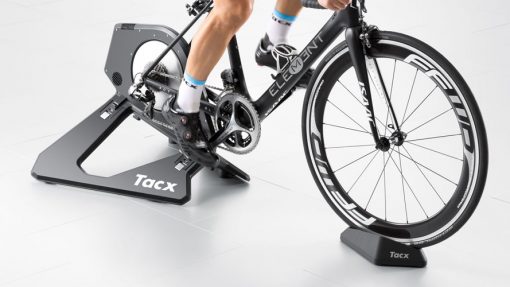

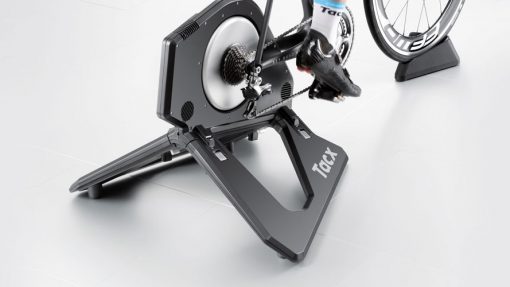

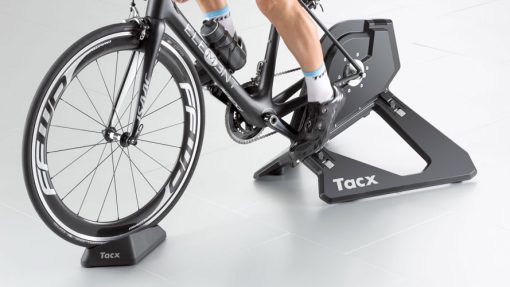

The Tacx NEO Smart is the most powerful and silent indoor trainer to date. It is the only real direct drive as it does not contain any physical transmission like a roller or belt. The NEO is also the only indoor trainer that can simulate different types of road surfaces.

Most silent, accurate and realistic trainer to date

The NEO’s innovative working principle has been the key to mastering the contradiction of being able to create a very powerful yet silent trainer. To optimize power efficiency from pedal to motor we eliminated all physical transitions, no belt, roller or wheel.

Endless Power without Complications

The offers high power levels at low speeds, enabling accurate hill climb simulations, without complications of calibrations and maintenance.

Highly Intelligent Mind

This brute force is harnessed by a highly intelligent mind. True road feel for any person and all slope magnitudes are achieved by the variable inertia control, the NEO predicts your movement 1000x per second and adjusts the resistance accordingly.

Exceptional Accuracy

The NEO derives its strength from an electromotor containing 32, precisely positioned magnets that rotate around 30 coils. This exceptional accuracy ensures minimal power loss – almost close to nothing – when training.

Plug-in/Plug-out Technology

Train anywhere. This unique feature enables the NEO to be used with or without mains power.

Downhill Drive

This feature enables the simulation of a descent and the dead centre in your pedal stroke. When you are going down a mountain in a Tacx Film, virtual world or GPS based training, the wheel keeps spinning. Just like when you’re riding outdoors.

Road surface simulation

Experience the feeling of riding on cobblestones, gravel and off road, all while you are indoors. You feel the vibrations of the road surface in your legs, exactly the way it would feel outdoors. This entirely new feature is unique to the NEO and can be used with some Tacx Films, virtual worlds and Zwift.

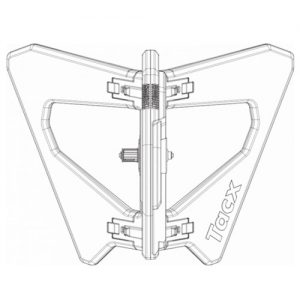

Big stable foot print. Maximize stability
tacx-neo-11
Dimension: 750 x 575mm

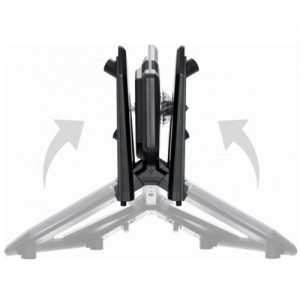

Cleverly Foldable
tacx-neo-12
After folding up the NEO the wings serve as a handle, increasing the trainer’s ease of use.

Rocking it
tacx-neo-13
A little bit of flex is built into the NEO’s frame in order to provide a more realistic cycling feeling.

Compatible software

Tacx Smart trainers use the Bluetooth Smart and ANT+ FE-C protocol for communication which allows them to be controlled by third-party software. The software receives the speed, cadence and power from the trainer and controls the brake. Click on more information for an explanation of the compatibility and functions of each software package.

tacx-100x100 zwift-logo-100x94 trainerroad-100x100 kinomap-trainer-100x100 skuga-by-kinomap-1 the-sufferfest-100x100

bkool-100x100 cycleops-100x100 fulgaz-100x100 golden-cheetah-100x100 veloreality-100x100 perfpro-1-100x100

FeaturesSpecifications
Magnets 32 Neodymium magnets
Type of trainer Interactive Smart direct drive with motor brake
Transmission None
Electrical requirements 110-240 Volt , Mains power optional
Power indicator (Wattage) Multicolour LED , spot on floor
Connection indicator (ANT/BT) 2 LEDs
Firmware upgradable Yes
Supplied with Front wheel support , Quick release for racing bikes and mountain bikes (5 mm)
Suitable bikes Width of rear fork: Race 130mm, MTB 135mm. Adapters for other widths available
Suitable cassettes various Shimano, SRAM & Campagnolo cassettes
Max. power (40 km/h) 2200 Watt
Max. slope 0.25
Simulation of descent Yes
Max. torque 85Nm
Max. brake force 250 N
Flywheel Virtual
Flywheel effect Variable to 125 kg (275.6 lbs)
Calibration No calibration required
Footprint (lxw) 575x750mm (22.6x29.5 in)
Height 550 mm (21.7 in)
Dimensions when folded 620x260x440mm (24.4x10.2x17.3 in)
Weight 21.5 kg (47.3 lbs)
Article number T2800
DATA OUTPUT AND CONTROL
Wireless communication ANT+ FE-C , Bluetooth Smart open
Control by Smartphone, tablet, ANT+ FE-C bike computers and stand-alone Connect to computer via ANT+ antenna
Output Speed, cadence and power
Read out on Smartphone, tablet, bike computer, sports watch, computer with ANT+ antenna
Accuracy <2%
* specifcations are subject to change without prior notice

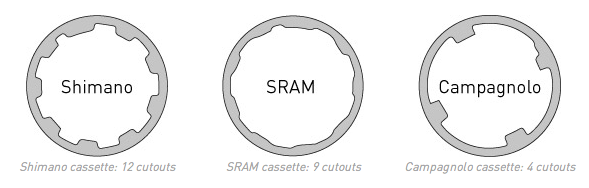

tacx-smart-neo-fits
  • SHIMANO : All models 9/10/11
  • SRAM : All models 9/10/11
  • CAMPY: All models EXCEPT (9s Centaur / 10s Veloce Centaur (2009 – 2011) / 11s Centaur )
