E-BIKE XDS EM600 (Shimano STEPS)

The 1st E-bike from XDS. Integrated with advance E-Bike gearing system Shimano STEPS.

Product Highlights:

  • XDS E-Bike Aluminum Frame (smooth welding)
  • Aluminum Fork with Disc Mount

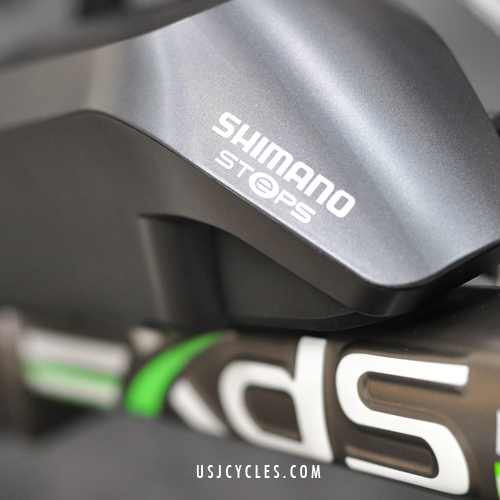

  • Shimano STEPS (E-Bike System)

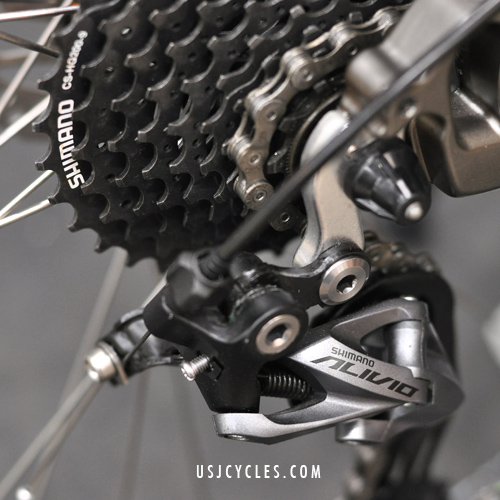

  • Shimano Alivio 9speed
  • Shimano Hydraulic Disc Brake System
  • Wheel size: 700c

Package includes:


Cateye Rapid Mini

worth: RM119.00

Cateye Volt 100

worth: RM139.00

RM12,639.00 RM11,999.00

In stock

Inclusive 6% GST
Colour or size is subject to availability
SKU: B1000101 Category: Brand:

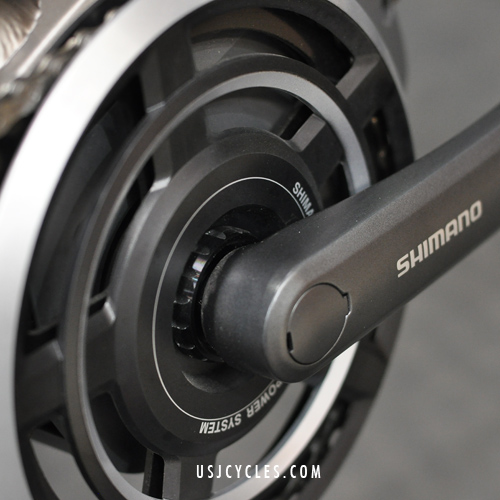

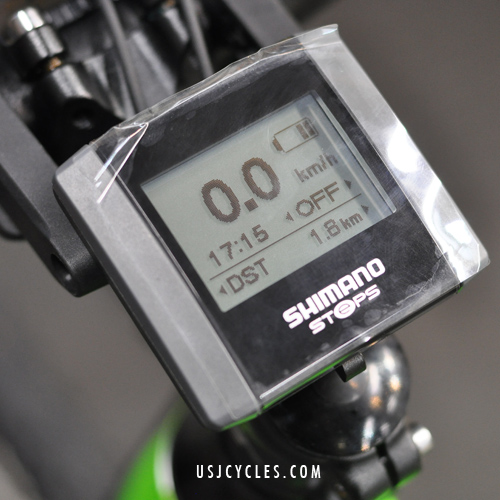

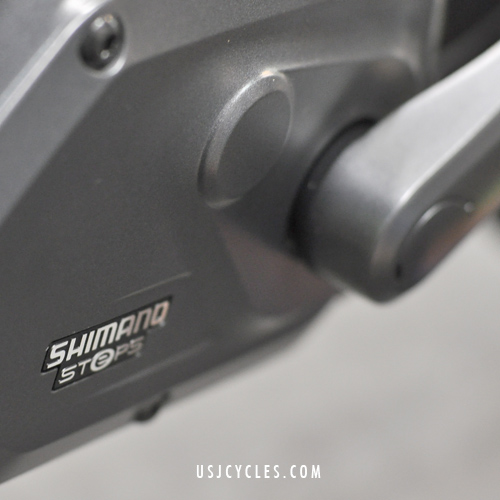

The new Shimano Steps System consisting of mid-mounted engine, battery, bike computer (display with range indicator and much more), crank shaft and chain. The new Shimano mid-mounted engine scores with a powerful performance, low weight and a harmonious driving behavior. Furthermore, the systems battery has a quite high range (up to 120 km in the Eco-mode).

The most important data of the Shimano Steps Mid-Mounted Engine:

  • Support up to 25 km/h
  • Torque 50 Nm
  • Weight 3.1 kg
  • 3 Support Modes (Eco, Normal, High)
Features Descriptions
System Type Mid-Drive
Nominal Power 1750
Peak Power 3500
Torque 50Nm
Assistance phase out begins 25km/h
Assistance stops 26km/h

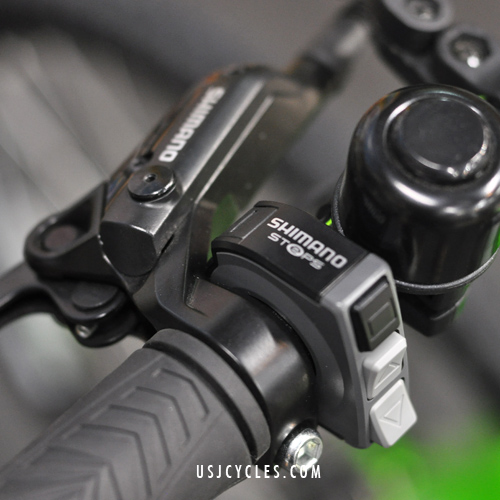

Thumb controller 2 thumb controllers mounted on left & right

(assist levels – L and Di2 shifting – R)
Shift detection Yes
Pedal Assist System Cadence Sensor
Torque Sensor
Speed Sensor
Crank Position Sensor
Noise level scale (1- loud, 10-no noise) 7
USB charging No
Assistance output displayed No
Odometer Yes
Trip Time Yes
Trip Distance Yes
Range remaining displayed Yes
Assistance levels available 3, plus no assist
Removable Yes
Backlight Yes
Assistance levels High – Additional assistance from drive unit not disclosed in Technical Data

Norm – Additional assistance from drive unit not disclosed in Technical Data

Eco – Additional assistance from drive unit not disclosed in Technical Data

Off – No assistance

Walk Assist – Yes
Battery charger output 42V@3.1A
* specifcations are subject to change without prior notice

Founded in 1995, XDS Shenzhen Xidesheng Bicycles Co., LTD is a bicycle enterprise that specializes in the integration of development, manufacturing, sales and services. Over the last 18 years of development, XDS has already become the top bicycle brand in China, and over 2000 stores across the country as well as exporting over 50 countries include Malaysia.
